The new standard in mobile dampening materials and tapes.

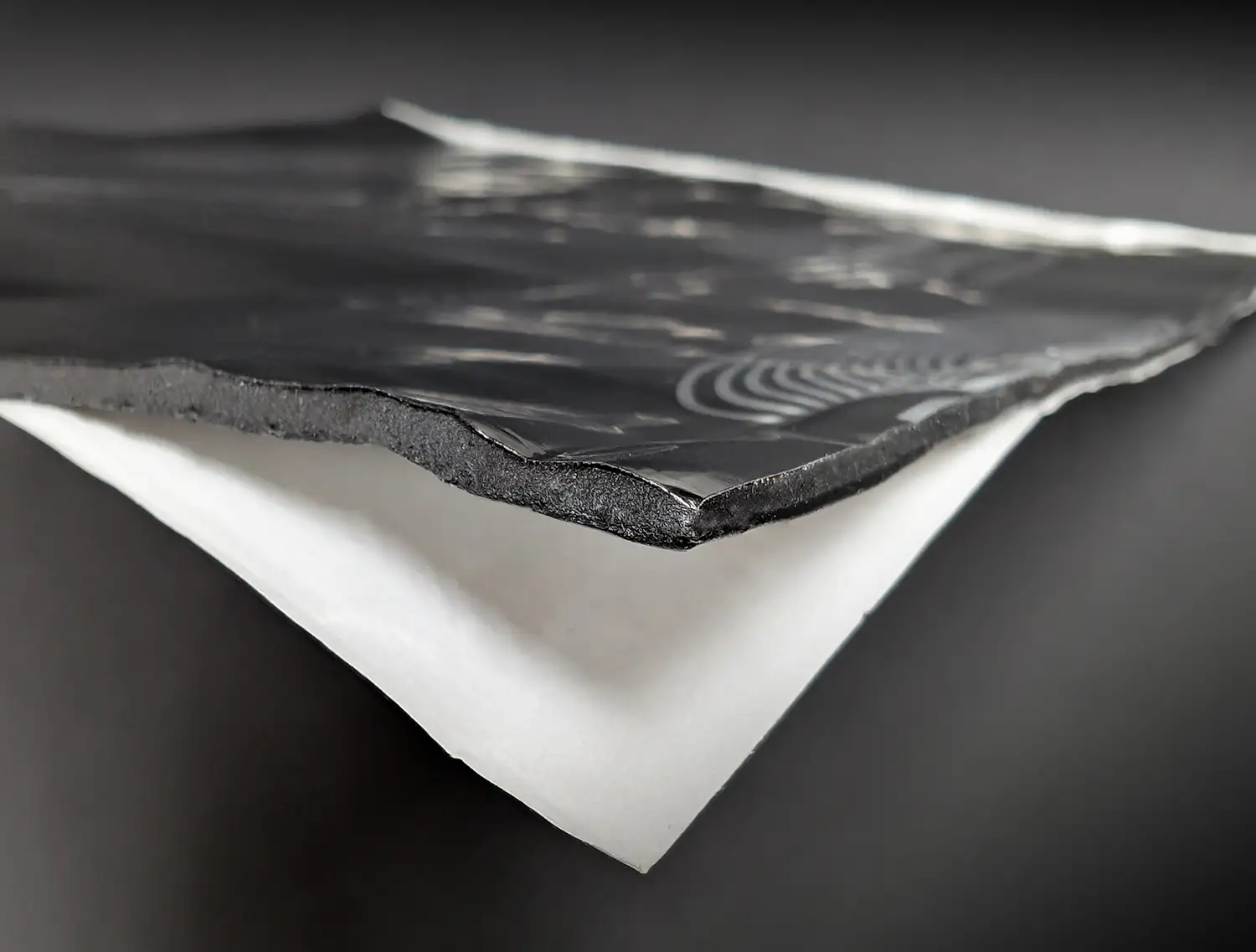

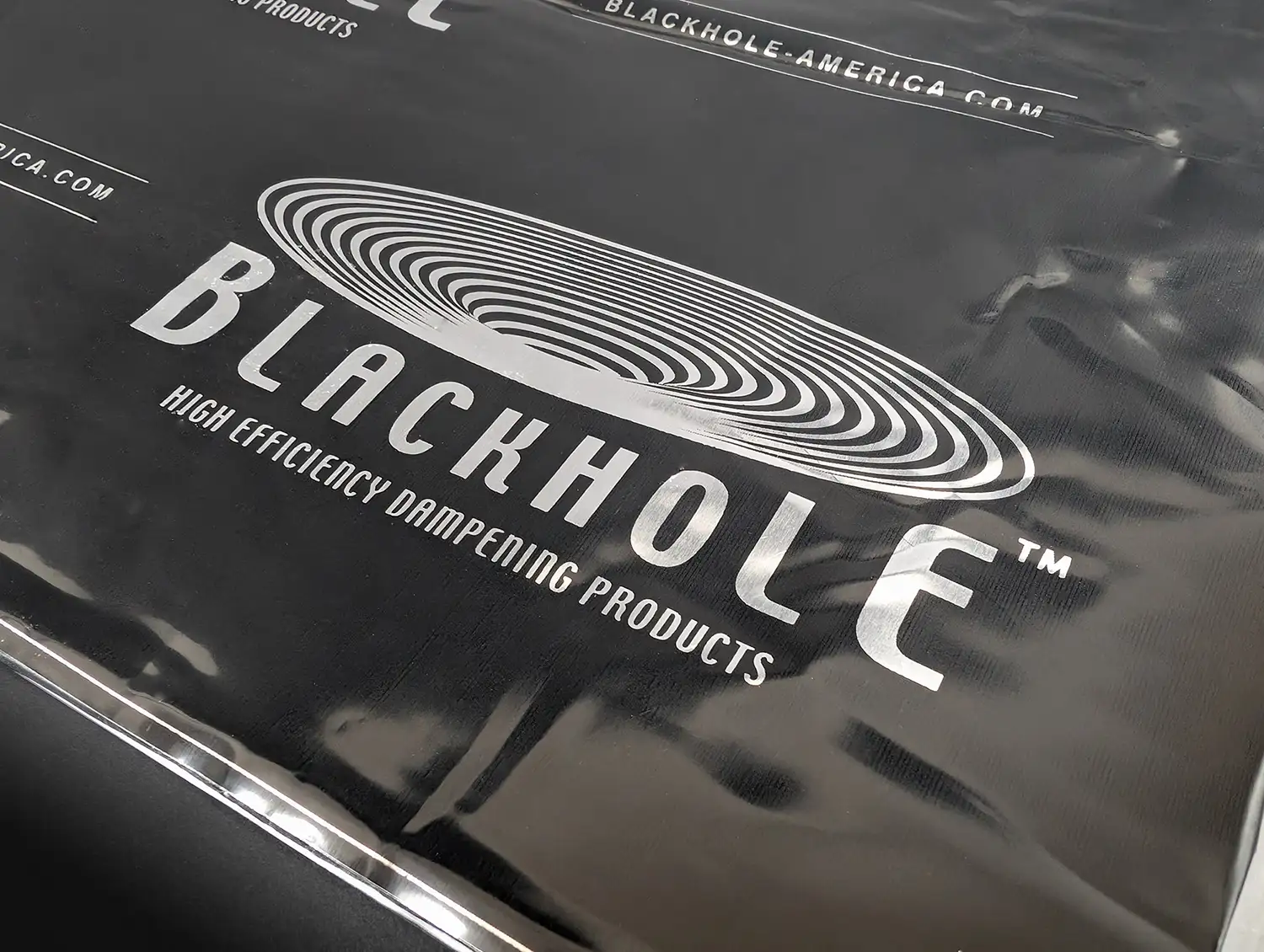

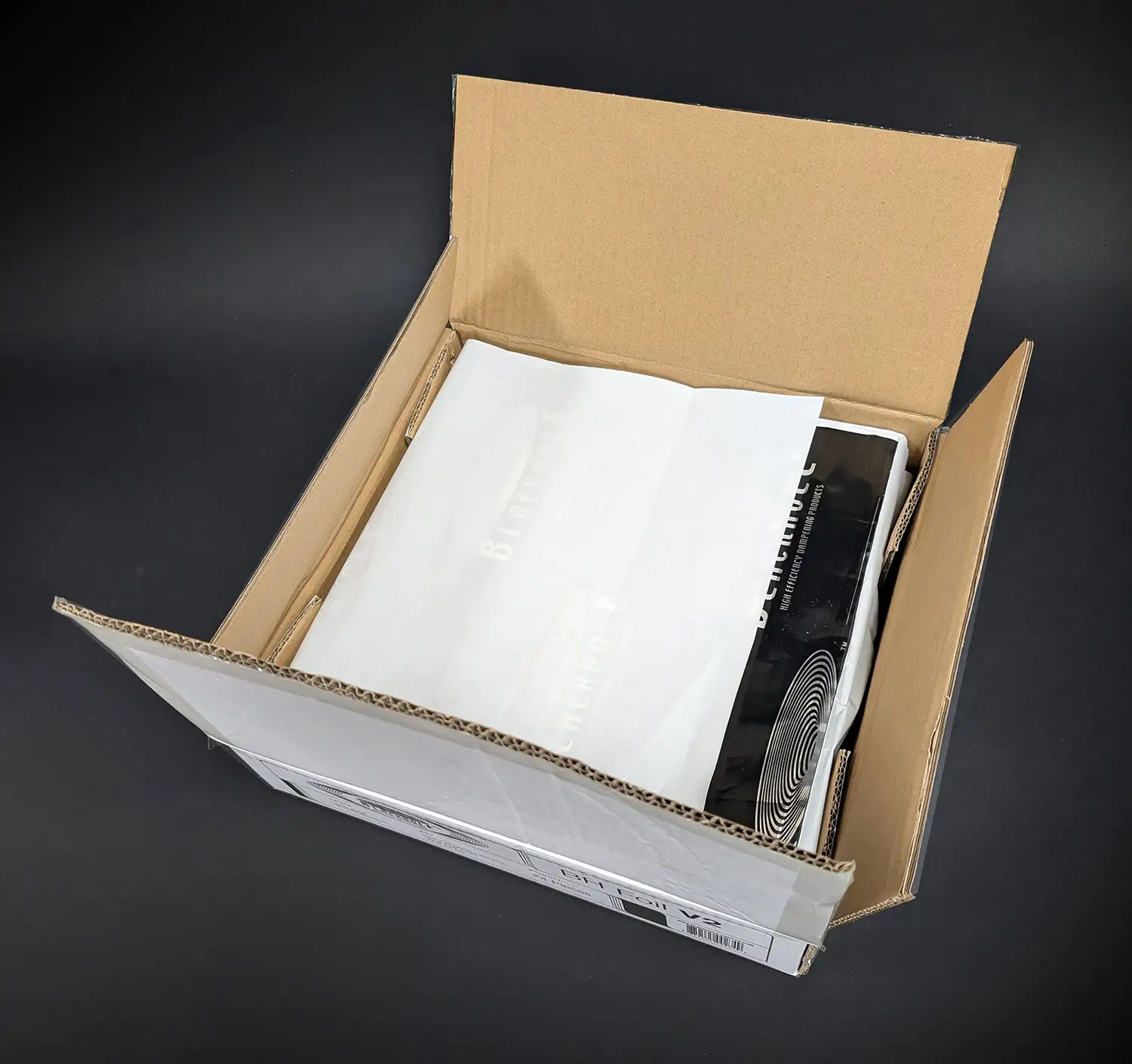

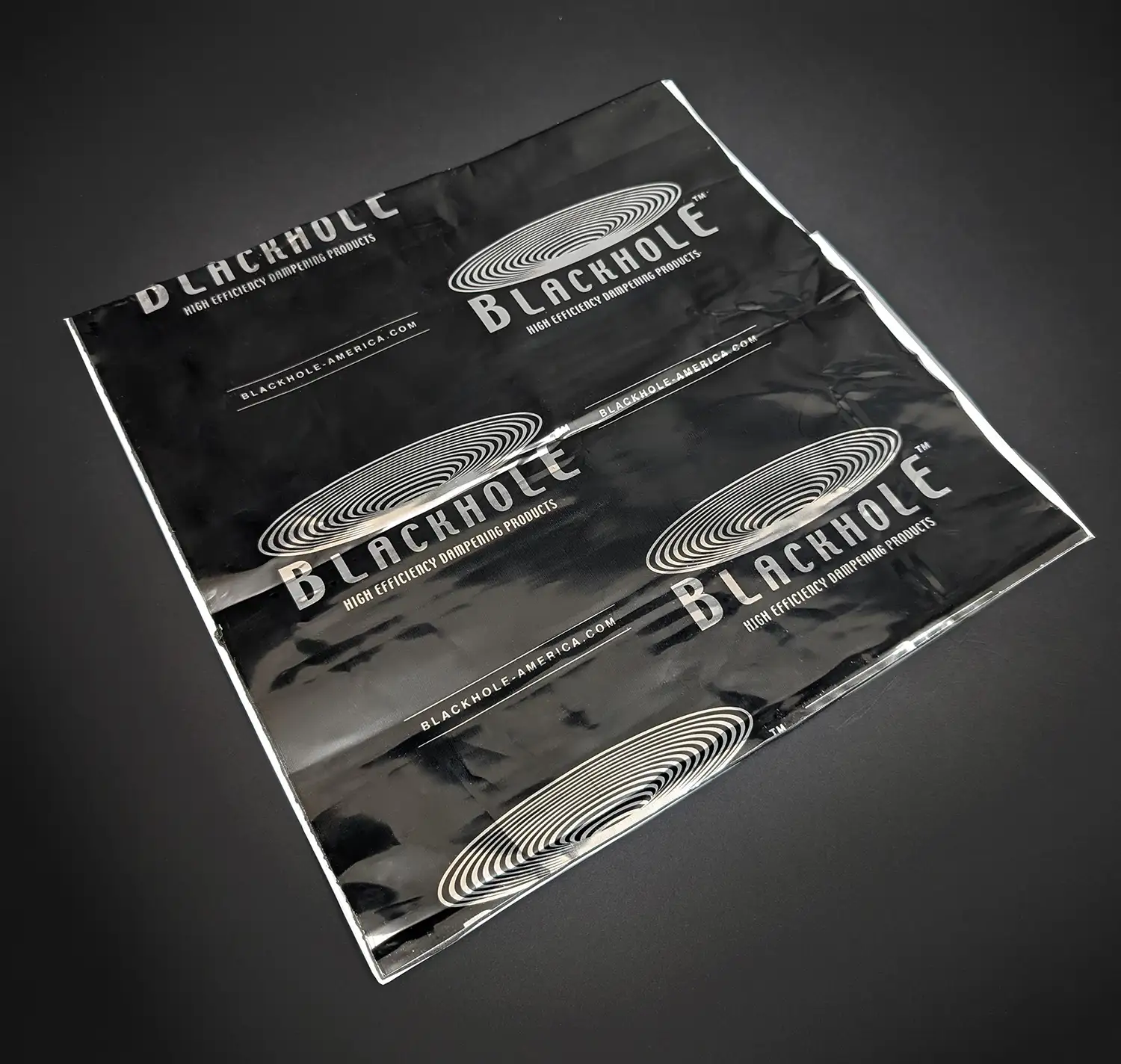

BH Foil V2
Product USE
The heavy-duty version of Foil, featuring extra stiffness and extra mass. Designed for damping metal and removing unwanted vibration from a less than perfect enclosure (your door). Use it to cover holes in doors, kick panels, fire walls, pass throughs and other areas.
LAYERS
3mm Butyl
0.1mm Aluminum
BENEFITS
Black Hole Foil has good drape and stretch to easily conform to irregular surfaces.
Can be formed around cylindrical shapes like a transmission tunnel.
It can be used in all areas of your car to damp vibrations and reduce noise.
No heating or tools are necessary for installation. It is easily cut with scissors, knife or die.
Size
Sheet: 0.12” T x 12” W x 12” W (3.1mm T x 304.8mm W x 304.8mm W) 24ft2 per box
QUANTITY
24 sheets per box

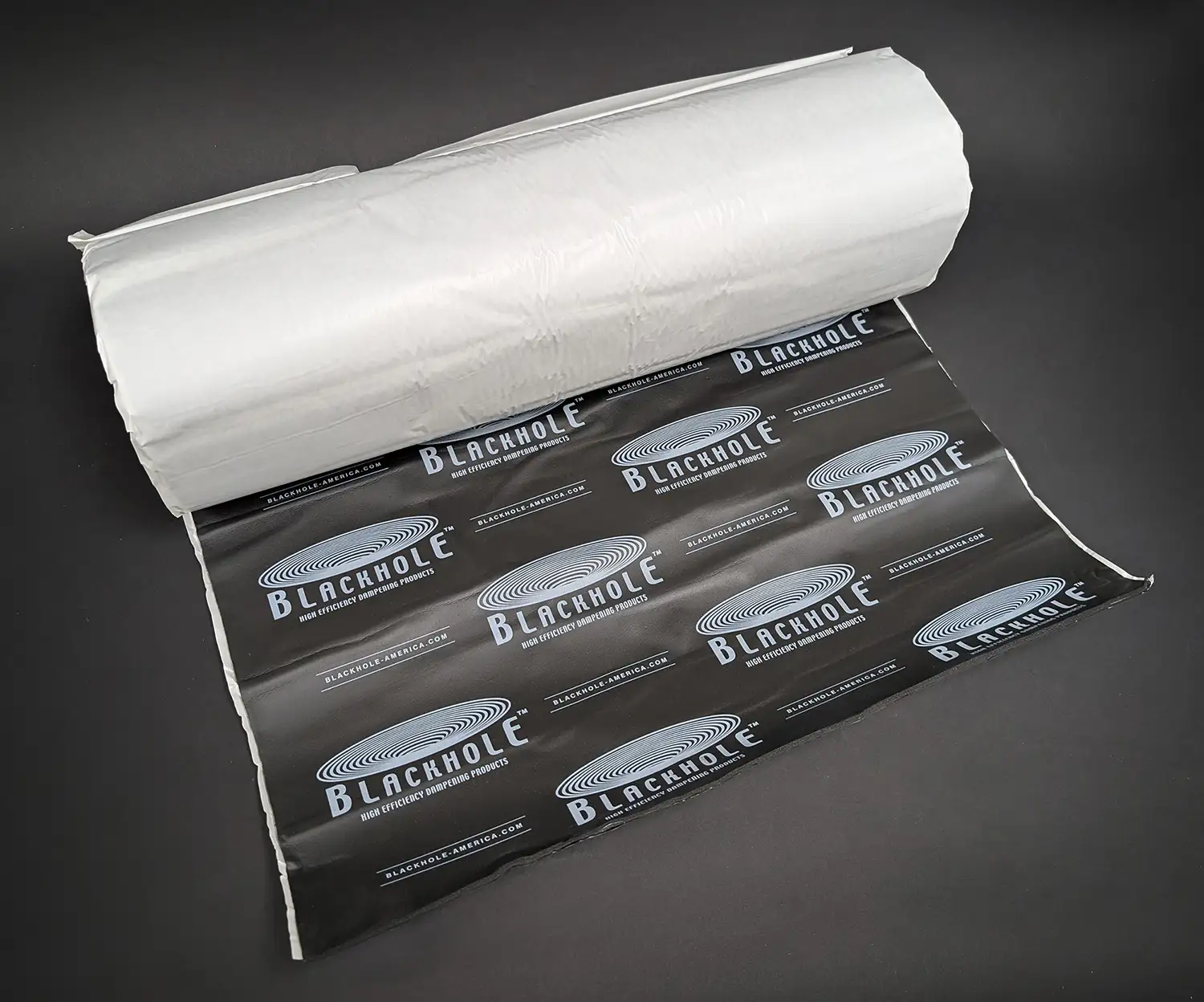

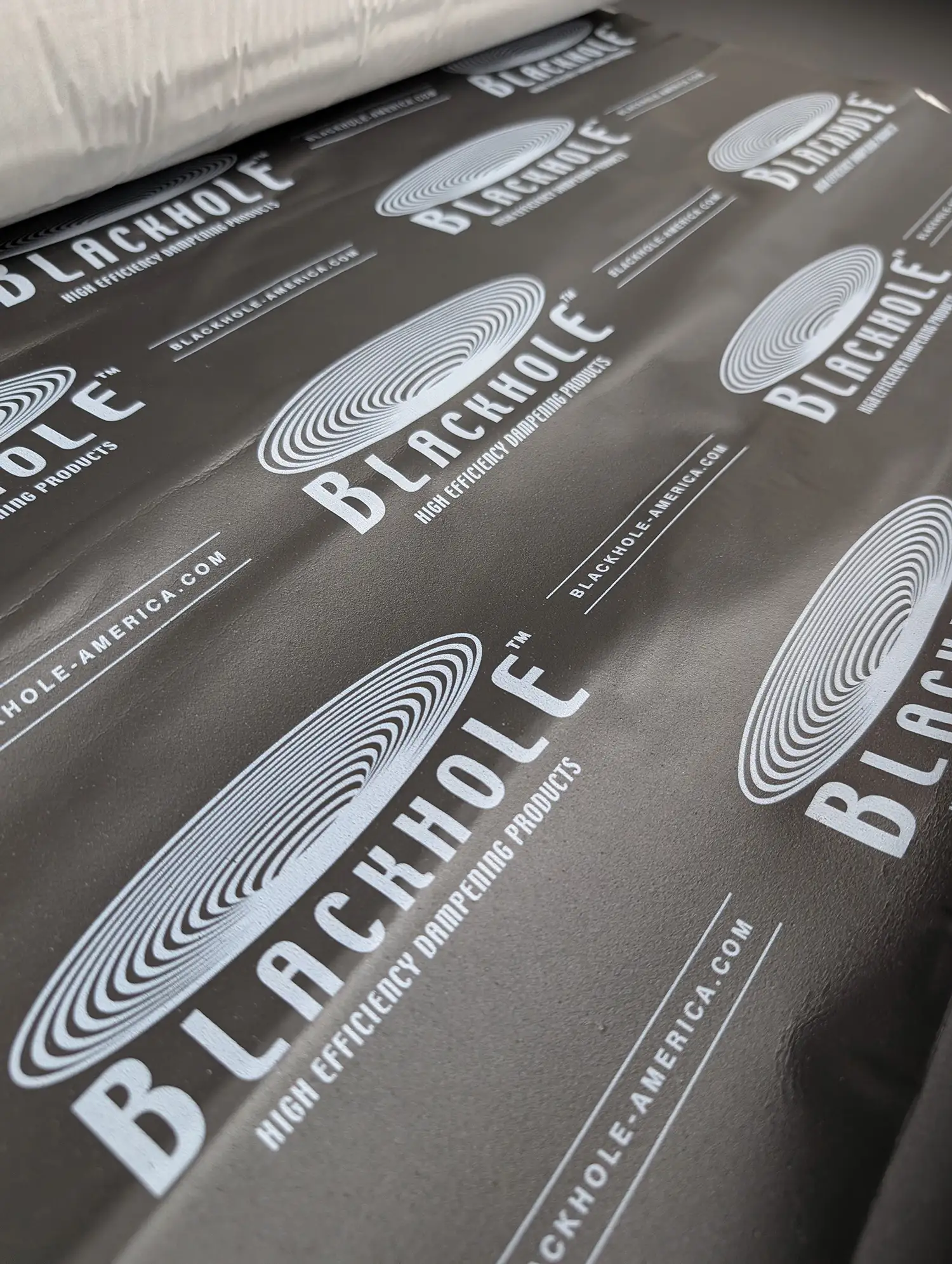

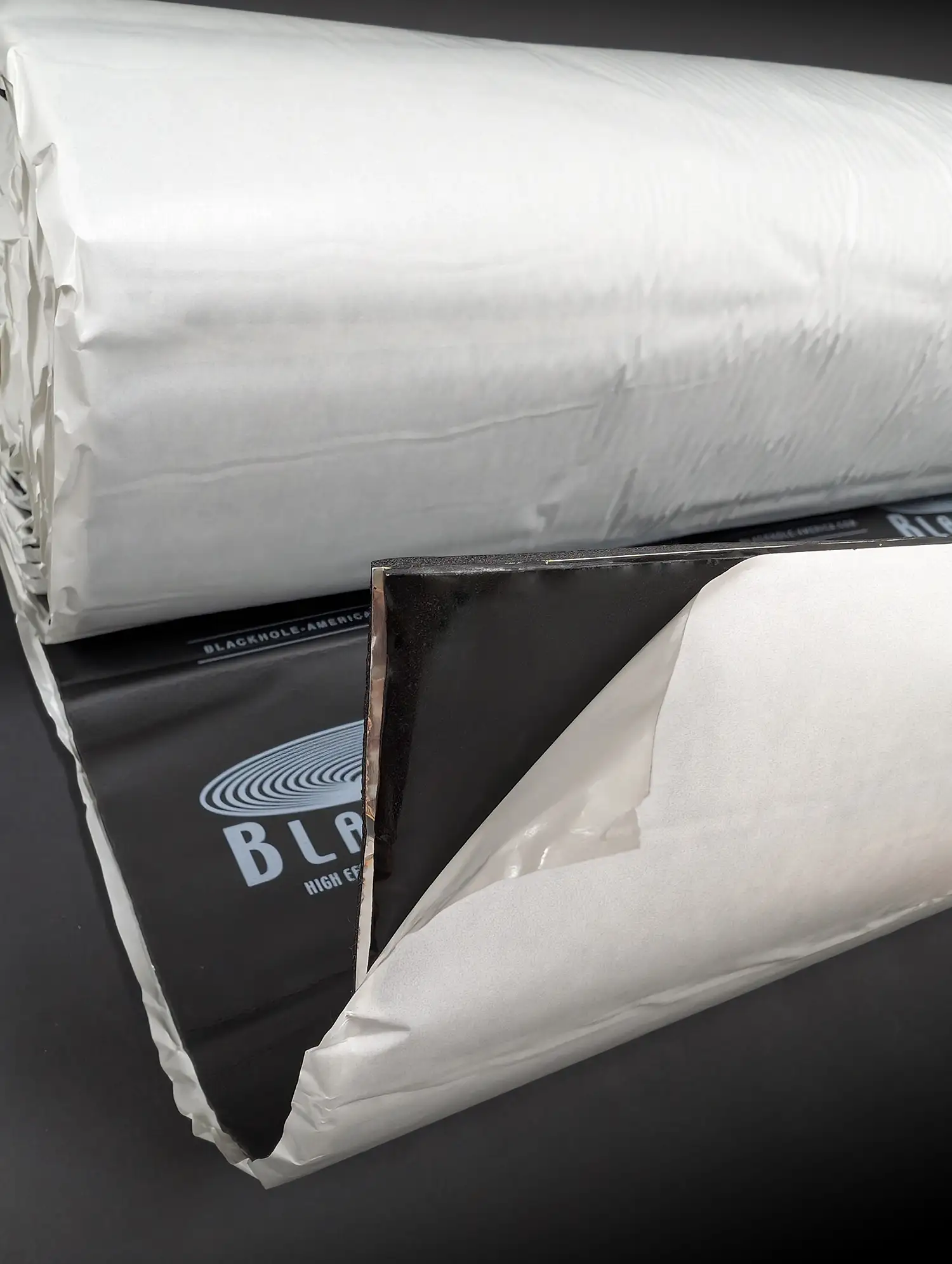

BH Mat V2
Product USE
Designed for damping metal and removing unwanted vibration from a less than perfect enclosure (your door). The foam layer prevents buzz and rattle from things that touch like wires, door control rods, plastic trim panels, etc. BH Mat V2 is extra wide to cover large doors such as a truck or SUV with one piece.
LAYERS
2mm Butyl The Butyl thickness is increased to 2mm to reduce sound transmission via lowering resonance frequency and improving damping whilst maintaining flexibility.
0.05mm Aluminum The foil is 0.05mm so that it can stretch to conform well to irregular shapes.
3mm Closed-Cell Acoustic Foam The new formula 3mm closed cell foam has improved damping to reduce noise.
BENEFITS
BH Mat V2 has good drape and stretch to easily conform to irregular surfaces.
It can be applied to every car interior surface to damp vibrations and reduce noise; use on your door skin, door inner panel to seal holes, plastic trim, trunk floor, fire wall, roof and speaker cabinet.
No heating or tools are necessary for installation. It is easily cut with scissors, knife or die.
Self-adhesive -54C to 150C = -65F to 302F
Size
Roll: 0.2” T x 24” W x 192” L (5mm T x 609.6mm W x 4876mm L) 32ft2 per box

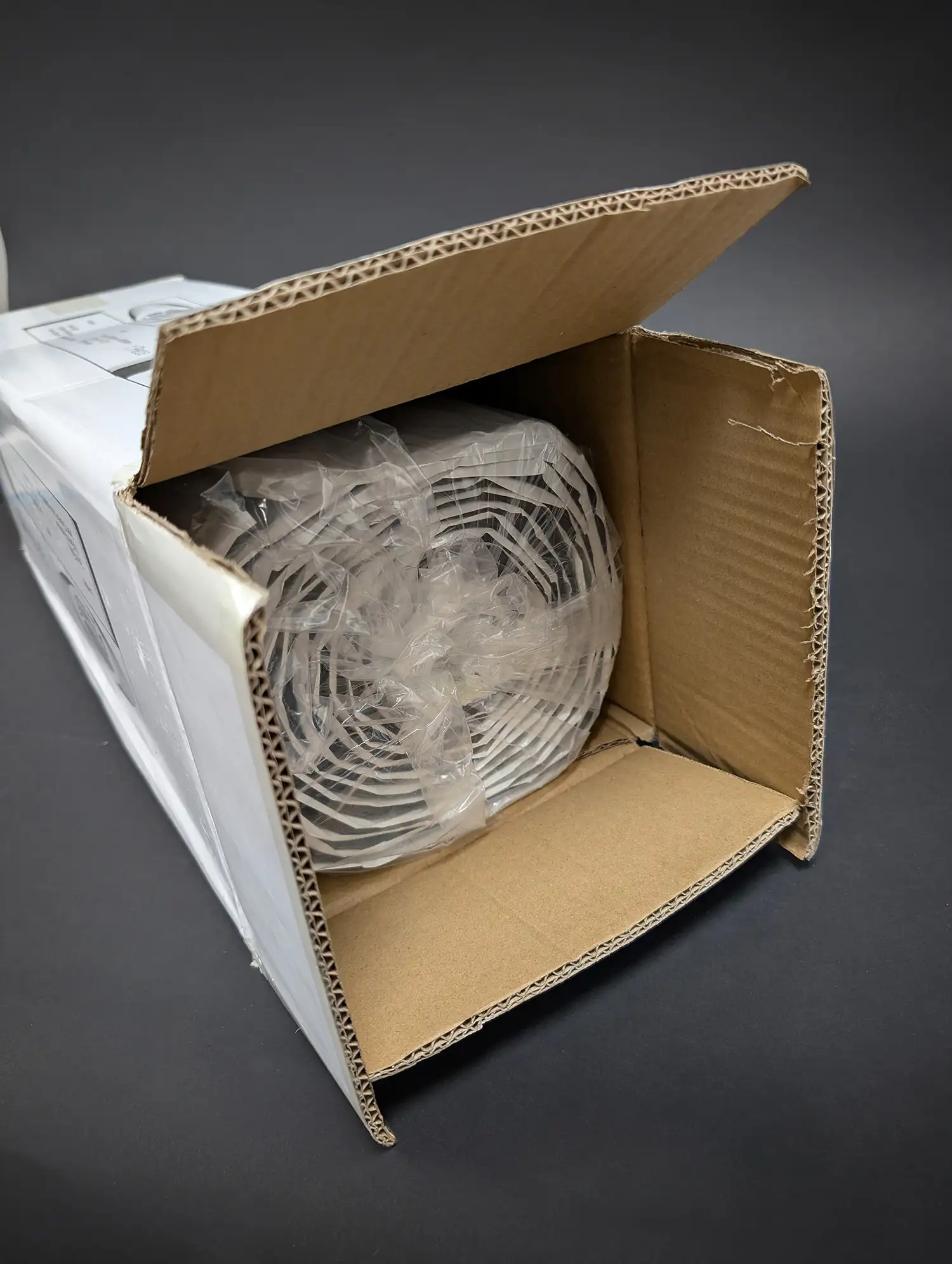

QUANTITY
1 roll per box

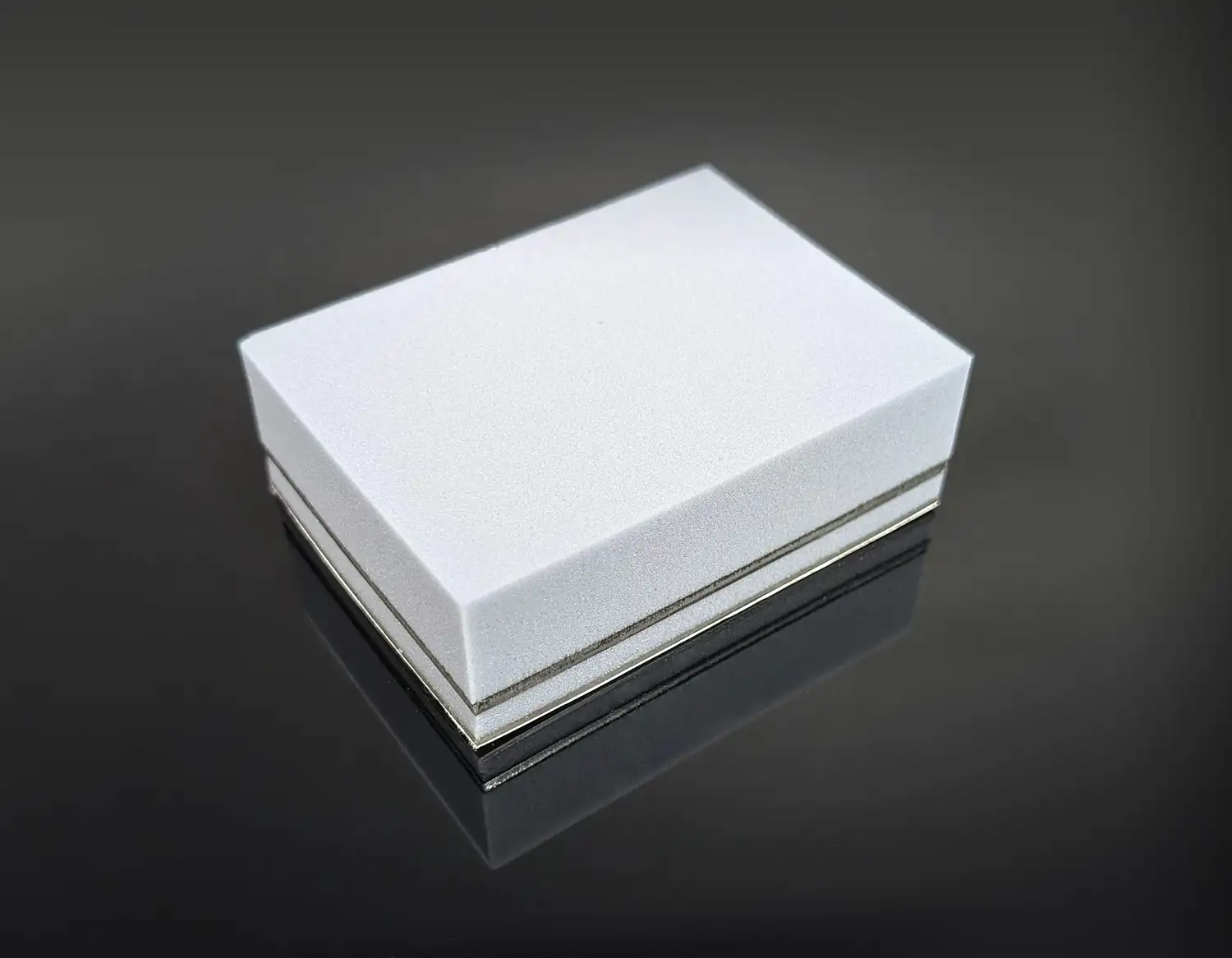

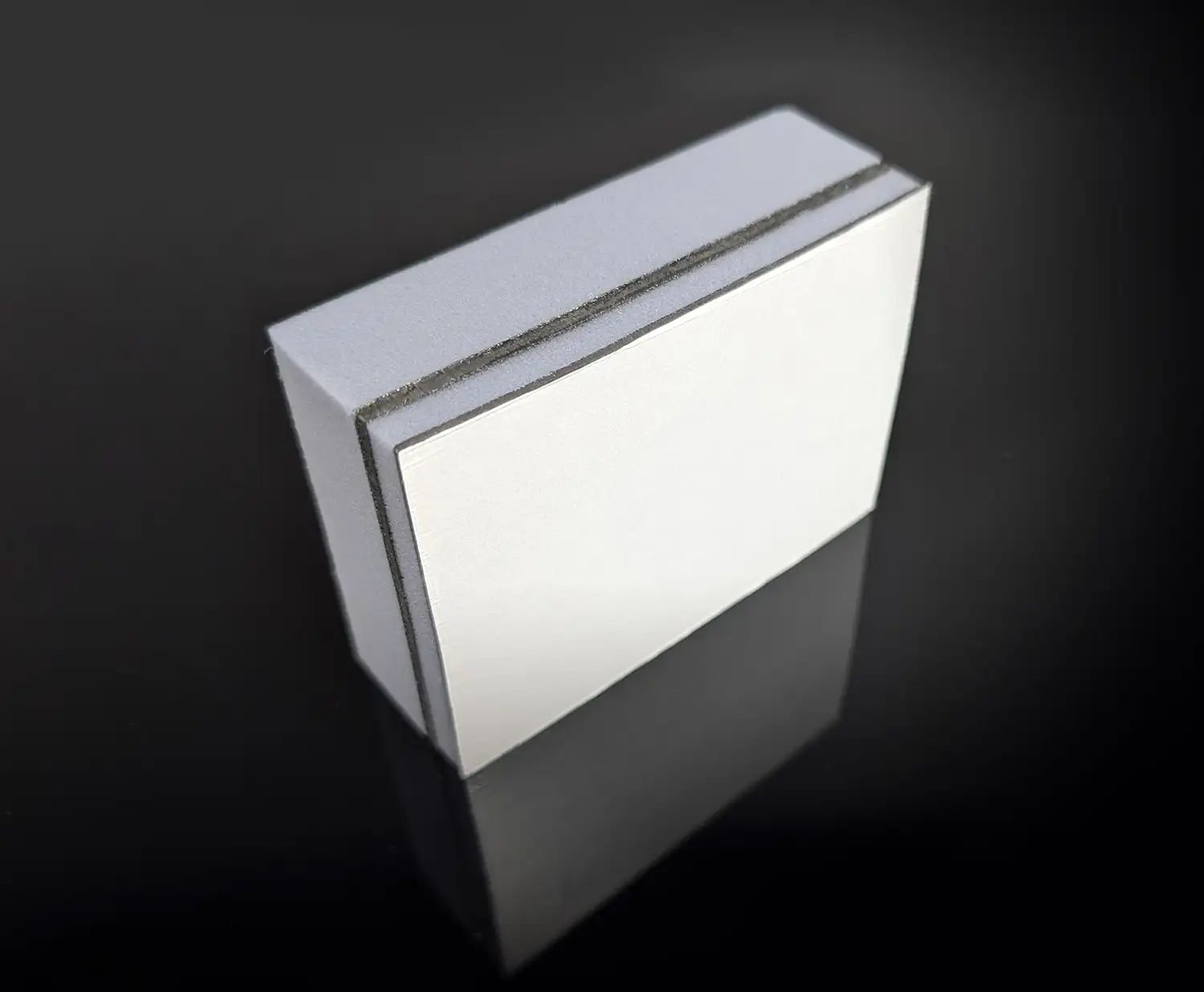

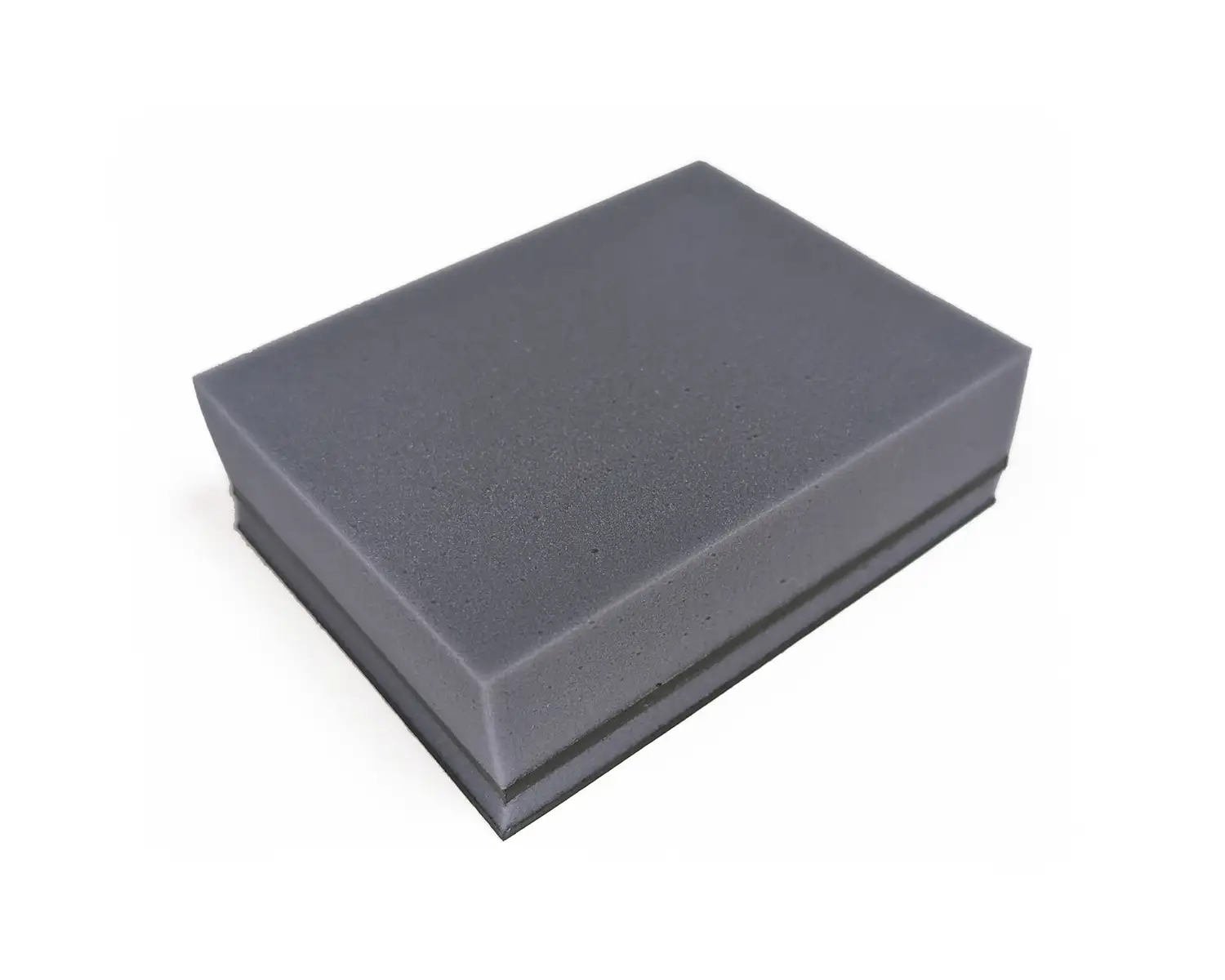

BH Tile V2
Product USE
BH Tile V2 is a water resistant multi-layer high efficiency acoustical absorption pad with a pressure sensitive adhesive back. Designed to be used inside the car door to damp the speaker back wave and vehicle outer skin. Features an all-new materials construction to improve all-around performance.
LAYERS
PSA Adhesive
1.5mm Damping
6mm Water Repellent Foam
3mm Damping
25mm Water Repellent Foam
BENEFITS
The new foam material naturally repels water, so it does not need to be sealed.
This leaves the foam’s micro cells open to significantly extend the high frequency response and absorption with NRC = 0.95. (Noise reduction coefficient)
Flame retardance is now the highest-level UL 94 V-0.
The base damping layer is 30% thicker and heavier to lower the resonance and sound transmission of the vehicle’s metal.
The bottom face is automotive grade pressure sensitive adhesive.
Size
Piece: 1.4” H x 4” W x 3” D (35.5mm H x 101.5mm W x 76mm D) 6ft2 per box

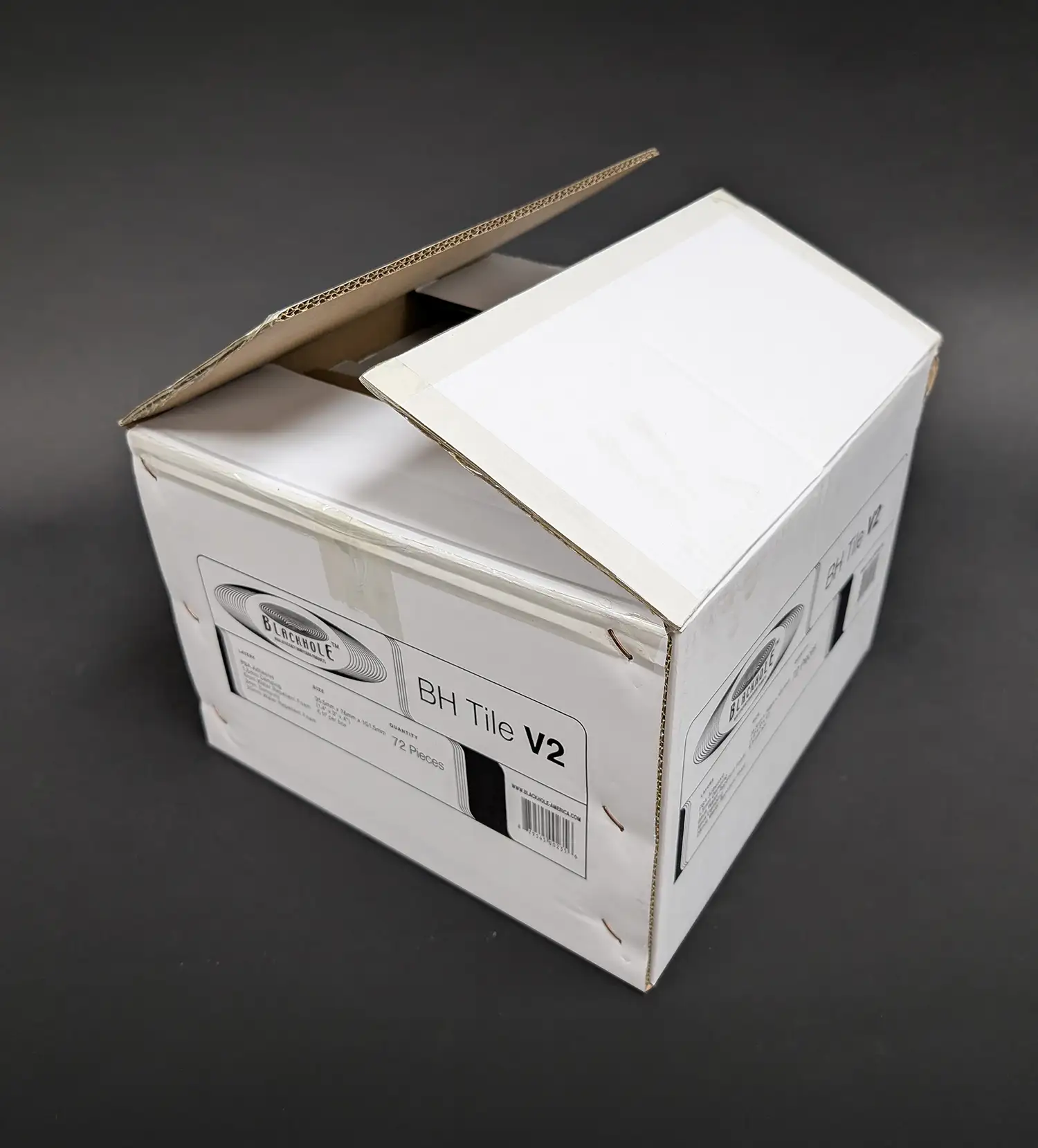

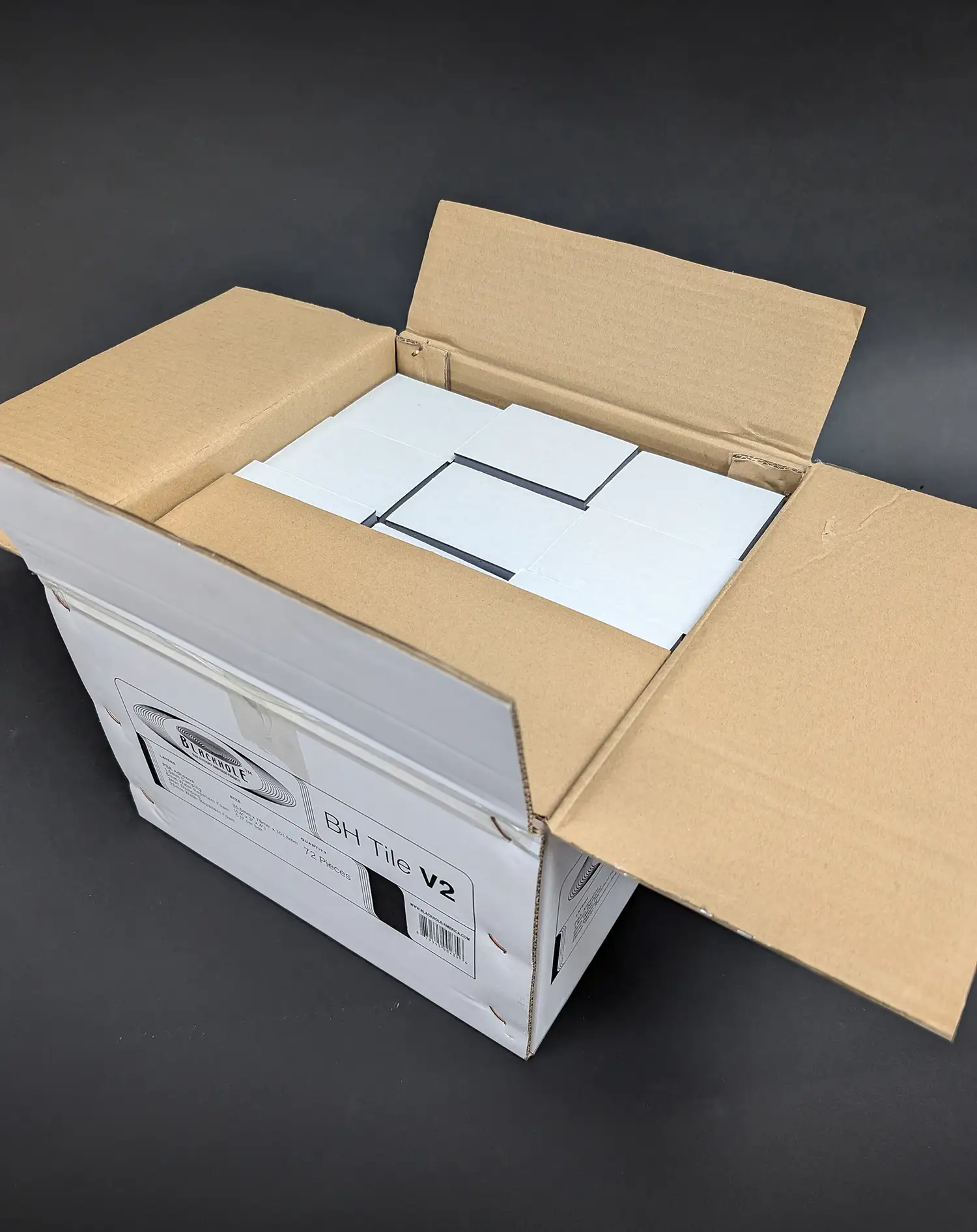

QUANTITY
72 pieces per box
Interior Wrap
BH IW 3|8
Interior Harness Wrap 3/8 x 25 meters
BH IW 3|4
Interior Harness Wrap 3/4 x 25 meters
Exterior Wrap
BH EW 3|8
Exterior Harness Wrap 3/8 x 25 meters
BH EW 3|4
Exterior Harness Wrap 3/4 x 25 meters
Double-Sided Tape
BH DST 3|8
Double side thin acrylic adhesive tape 3/8 x 55 meters
BH DST 1|2
Double side thin acrylic adhesive tape 1/2 x 55 meters
BH DST 3|4
Double side thin acrylic adhesive tape 3/4 x 55 meters
BH DST 1
Double side thin acrylic adhesive tape 1″ x 55 meters
Paint Protection Tape
BH PPT 4
Paint protection tape 4″ x 220 yards
BH PPT 9
Paint protection tape 9″ x 220 yards
BH PPT 14
Paint protection tape 14″ x 220 yards
Interior Panel Protection Tape
BH IPPT 9.4″
Interior panel protection tape 9.4″ x 72 yards (1 Roll)
High Bond Double-Sided Foam Tape
BH HBDST 1|2
High bond double sided foam tape 1/2 x 36 yards
BH HBDST 3|4
High bond double sided foam tape 3/4 x 36 yards
Archived Products
Foil *discontinued*
Product
Butyl rubber and aluminum constrained layer damping material.
Use
Designed for damping metal and removing unwanted vibration from a less than perfect enclosure (your door).
Description
Black Hole Foil has good drape and stretch to easily conform to irregular surfaces.
It can be used in all areas of your car to damp vibrations and reduce noise.
No heating or tools are necessary for installation. It is easily cut with scissors, knife or die.
Size
12.5” X 36” X .068”

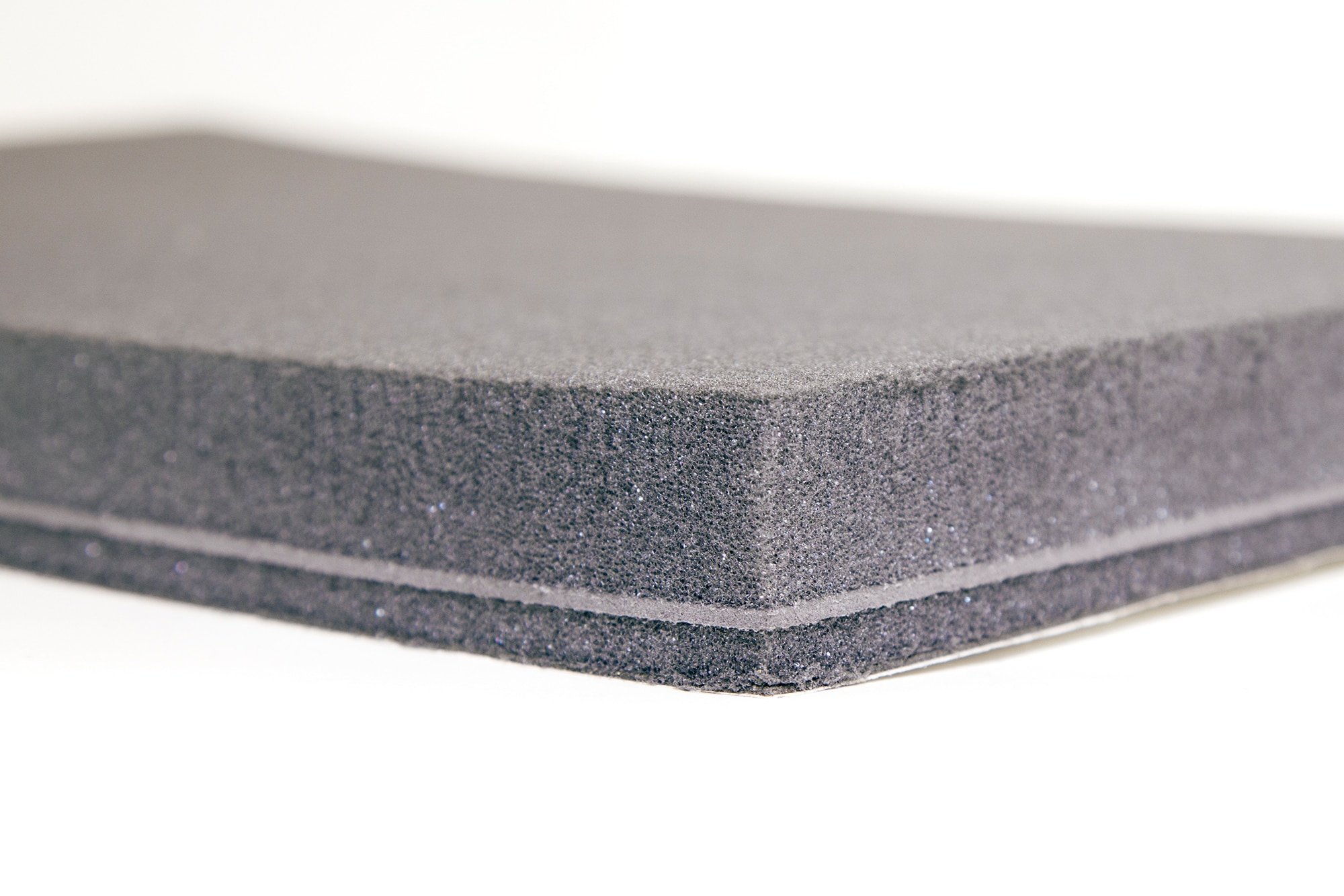

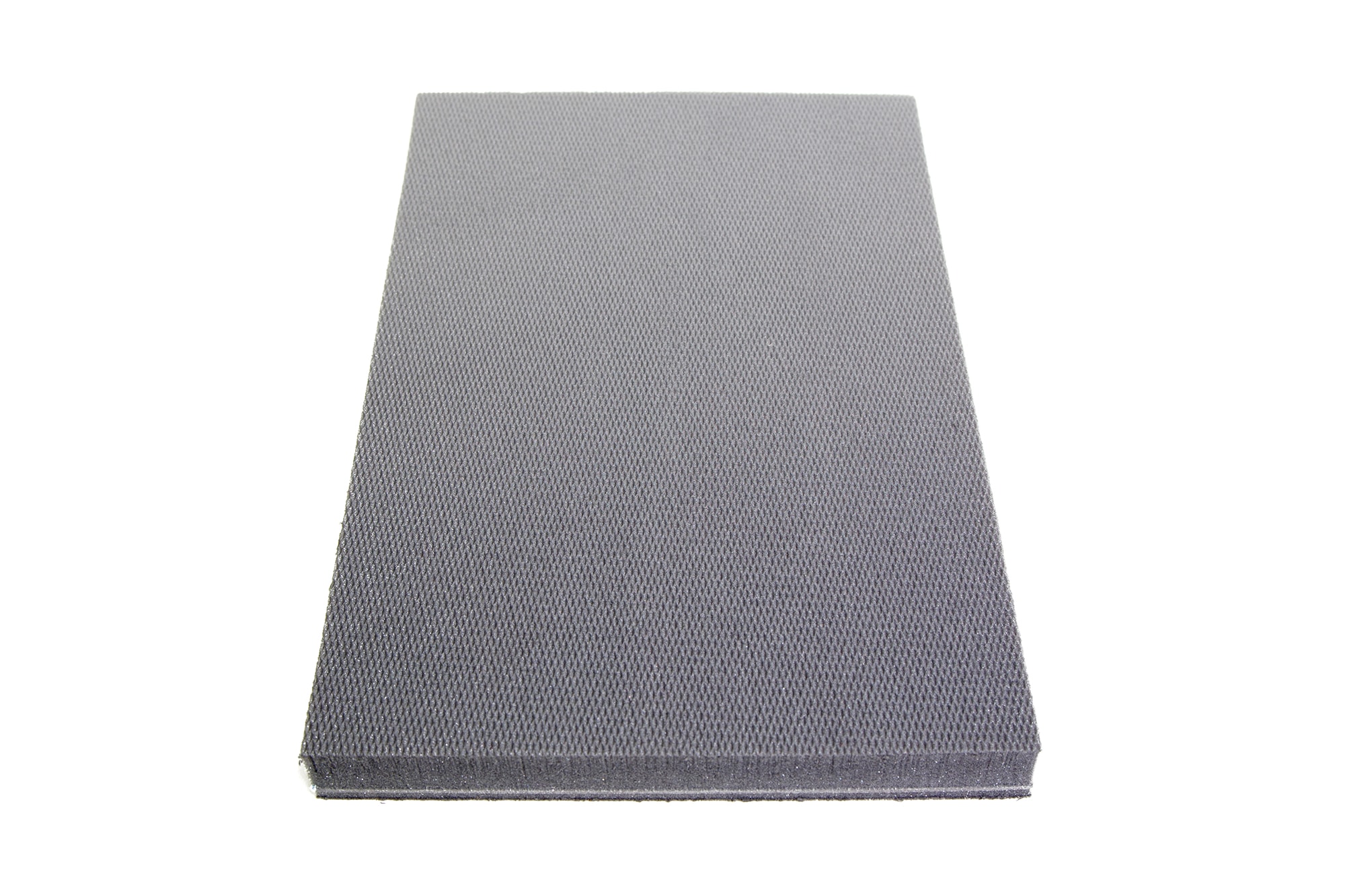

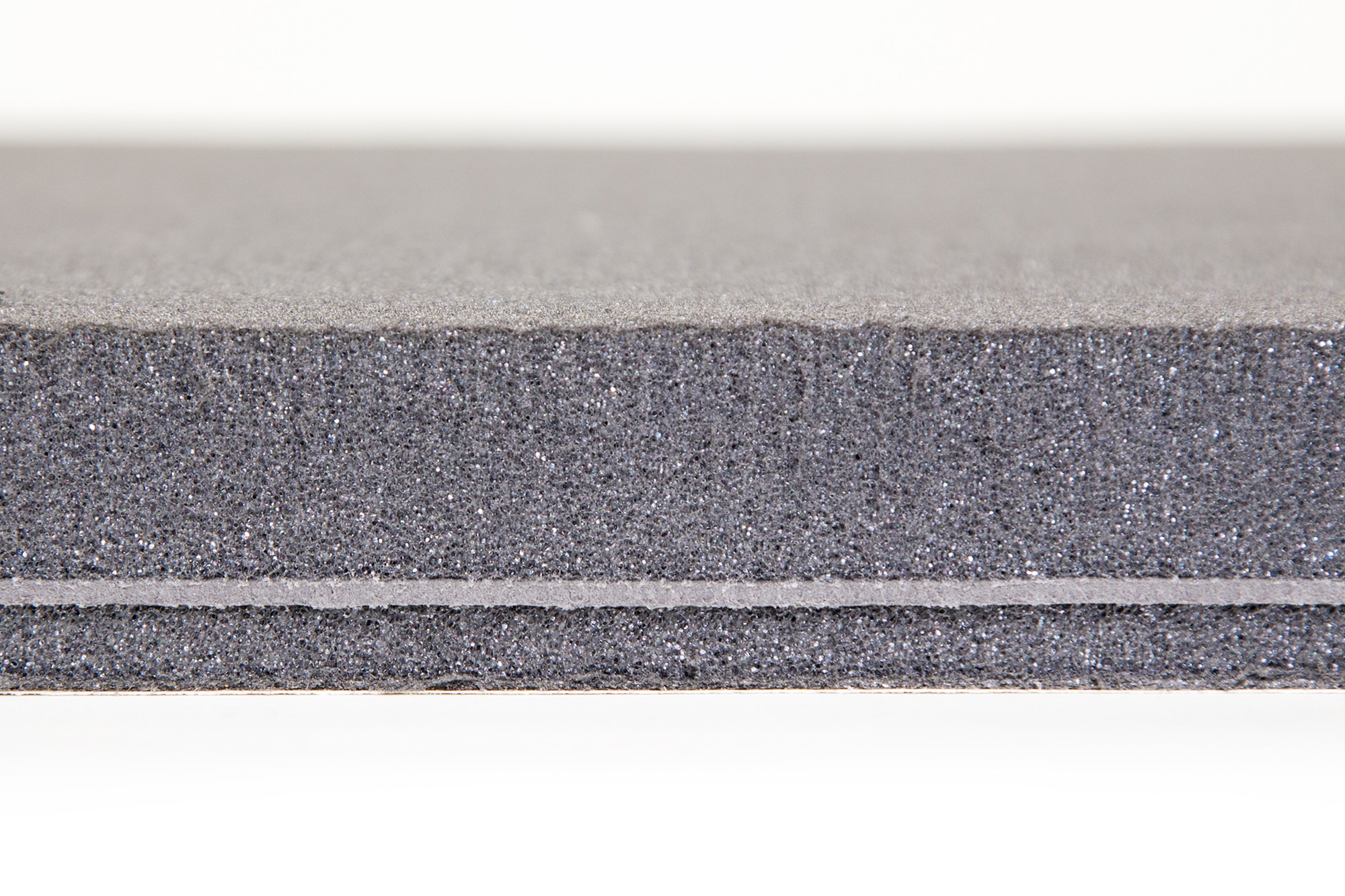

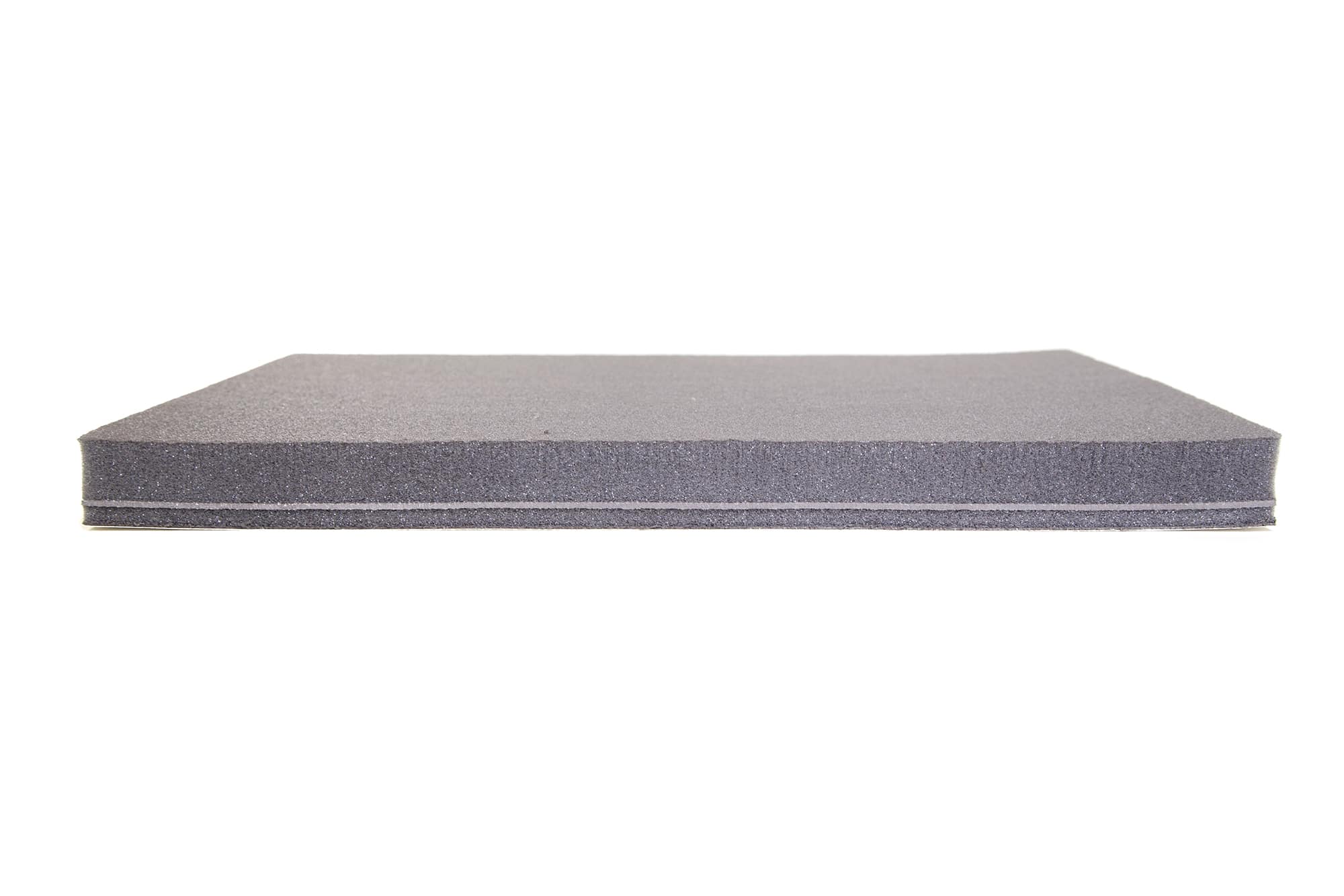

BH Five
Product
A five layer high efficiency acoustical absorption pad with a pressure sensitive adhesive back.
Use
To provide the best complete acoustic damping for speaker and subwoofer enclosures.
Description of Layers
1) Thin diamond pattern embossing dramatically improves performance of the whole acoustical system, especially the sensitive lower mid-range and mid-bass frequencies. 2) High efficiency acoustical absorption layer from high density polyurethane foam. 3) “Floating Wall” sound barrier made of limp flexible vinyl copolymer loaded with non-lead inorganic fillers. 4) Vibration isolation layer made with polyurethane flexible closed cell foam. 5) Hi-loss flexible viscoelastic double thickness damping layer. Backed with a super strong pressure adhesive.
SIZE
12” x 18” x 1.5”
BH Mat *discontinued*
Product
A self-adhesive three layer (4.5mm thick) damping material consisting of 1.5mm Butyl rubber, 0.05mm aluminum constrained layer damping and 3mm closed cell damping foam.
Use
Designed for damping metal and removing unwanted vibration from a less than perfect enclosure (your door). The foam layer prevents buzz and rattle from things that touch like wires, door control rods, plastic trim panels, etc.
Description
Black Hole Mat has good drape and stretch to easily conform to irregular surfaces. It can be used in all areas of your car to damp vibrations and reduce noise. No heating or tools are necessary for installation. It is easily cut with scissors, knife or die.
Can be applied to every car interior surface; door skin, door inner panel to seal holes, plastic trim, trunk floor, fire wall, roof and speaker cabinet. Self-adhesive -54C to 150C = -65F to 302F
Size
20” x 79” x .19” (805mm x 2007mm x 4.55mm) 1 Sheet

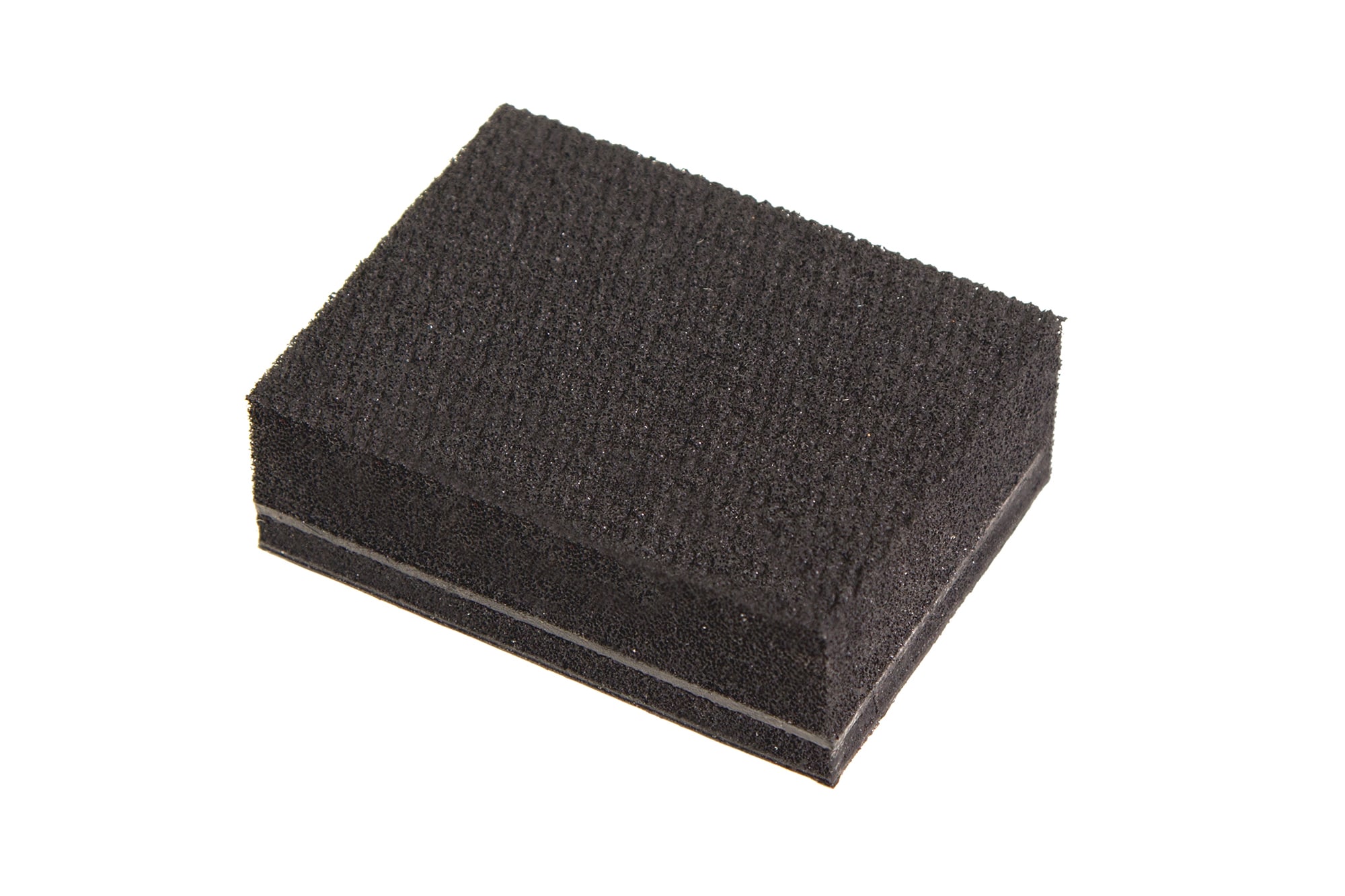

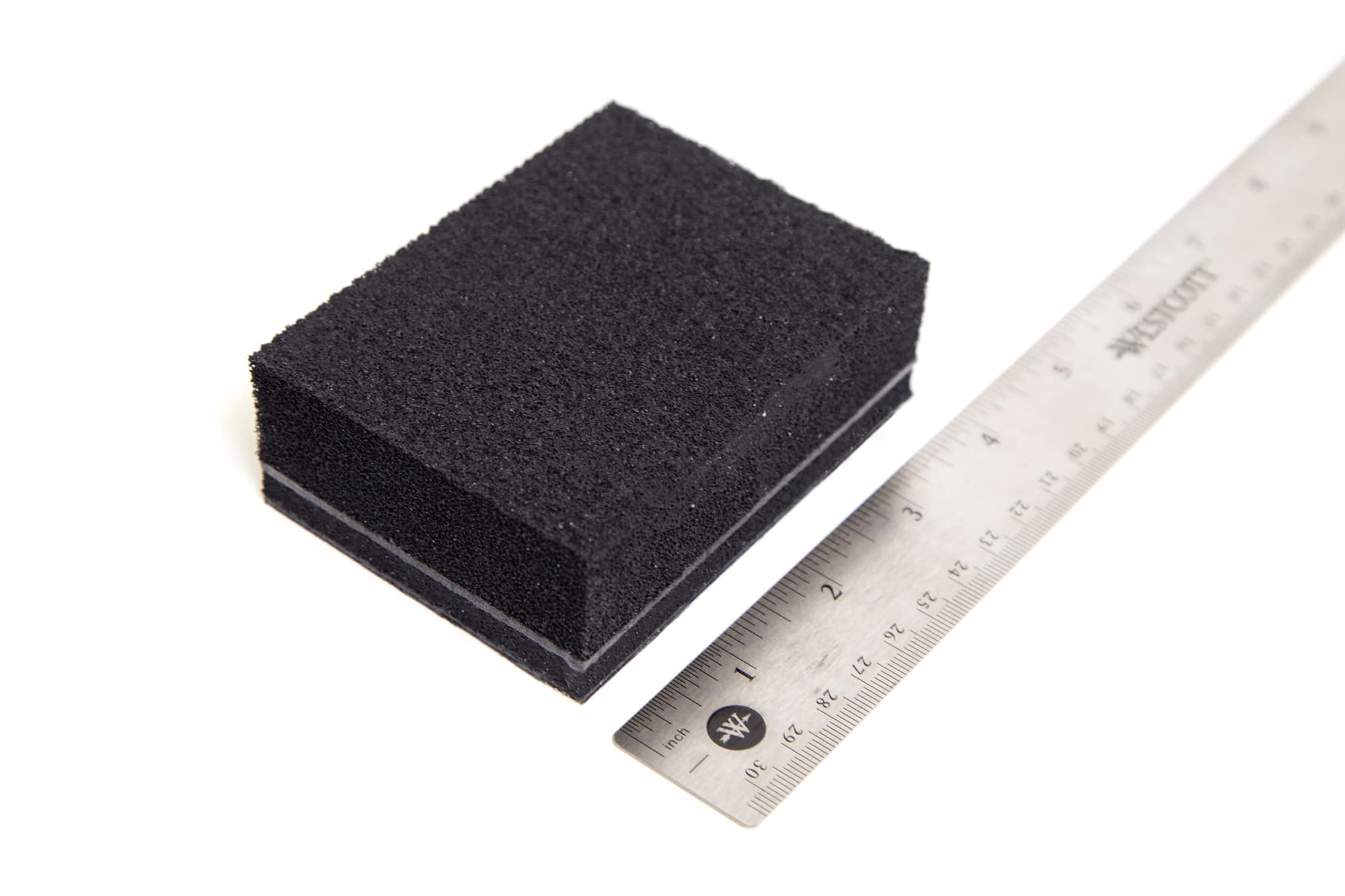

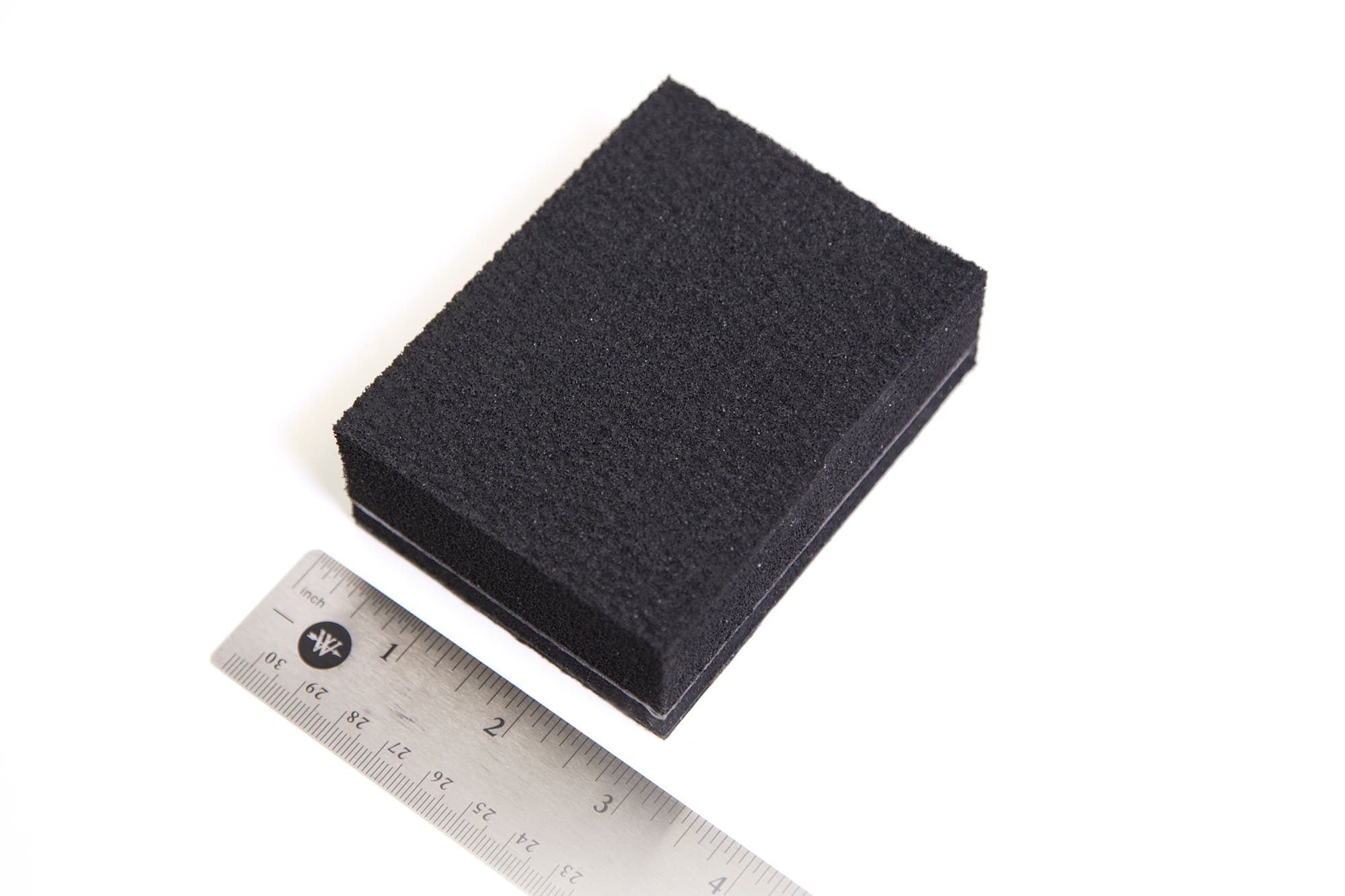

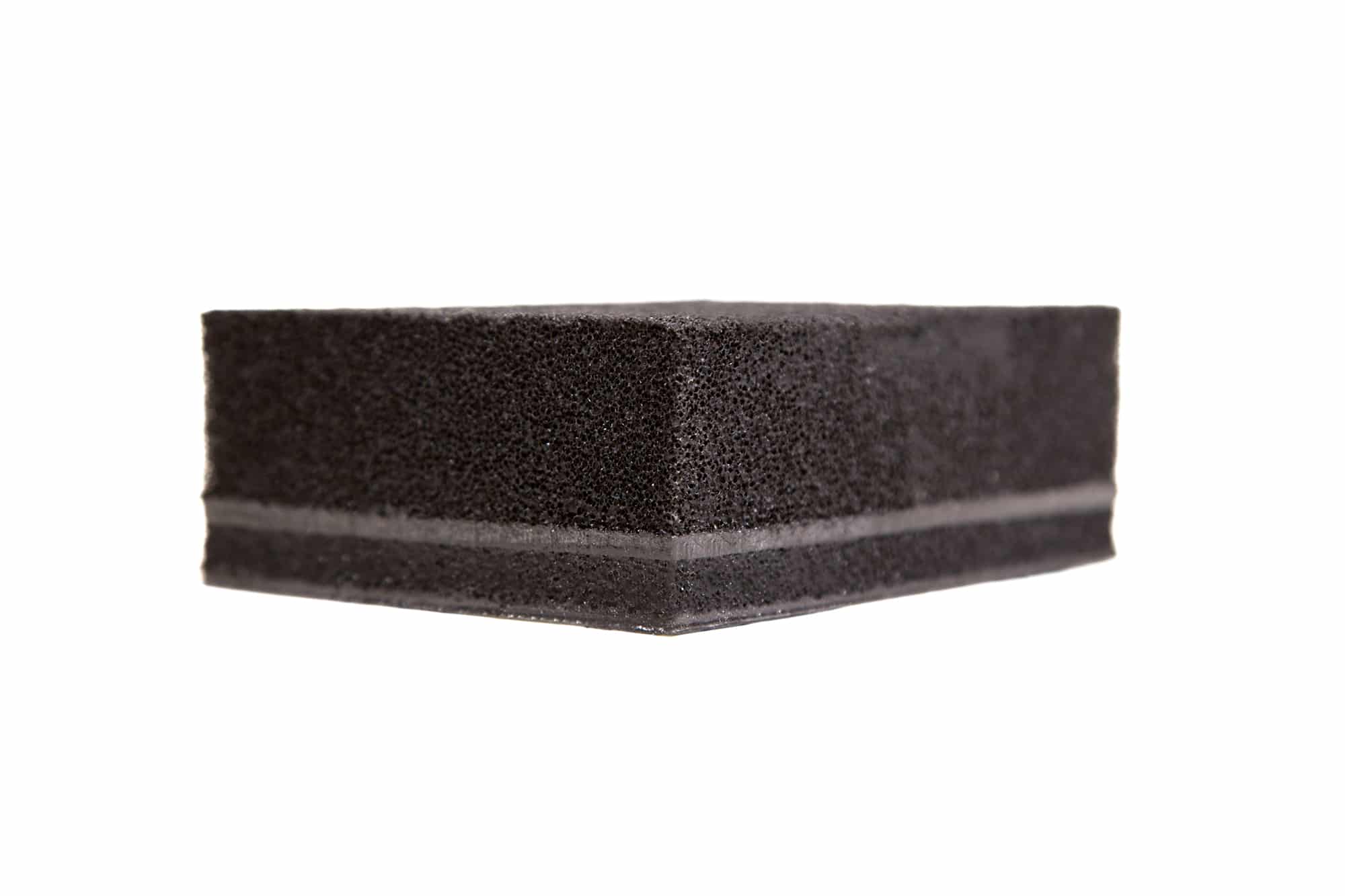

BH Tile
Product
A coated water resistant multi-layer high efficiency acoustical absorption pad with a pressure sensitive adhesive back.
Use
Ideal damping for enclosures exposed to the elements. Such as marine, car door, and other similar applications.
Description of Layers
1) High efficiency acoustical absorption layer from high density polyurethane foam.
2) “Floating Wall” sound barrier made of limp flexible vinyl copolymer loaded with non-lead inorganic fillers.
3) Vibration isolation layer made with polyurethane flexible closed cell foam.
4) Hi-loss flexible viscoelastic double thickness damping layer, backed with a super-strong pressure adhesive.
5) Sealed to ensure water resistance.
Size
4” x 3” x 1.5”
bh tile
72 Pieces
bh tile STARTER
For 2 Car Doors (Regular Coverage) 18 Pieces
bh tile ADVANCED
For 2 Car Doors (Extra Coverage) 40 Pieces
BH Stuff 2s
Product
Denim cotton acoustic damping. Treated for mold, fungus, mildew, bacteria. Class A fire retardant.
Use
To provide better acoustic damping for speaker and subwoofer enclosures.
Description
Blackhole Stuff is a material designed to be used as a filler for enclosure applications. The goal in using Stuff is to provide a material with superior resonance control compared to foam, fiberglass, polyester or wool. Stuff sustains it’s shape, volume, and will not collapse; Retaining it’s full efficiency over time. *Over 85% recycled material.
Size
23” x 93” x 5.5”
bh stuff 2s
Default Order 2 Sheets Now 93″ long
